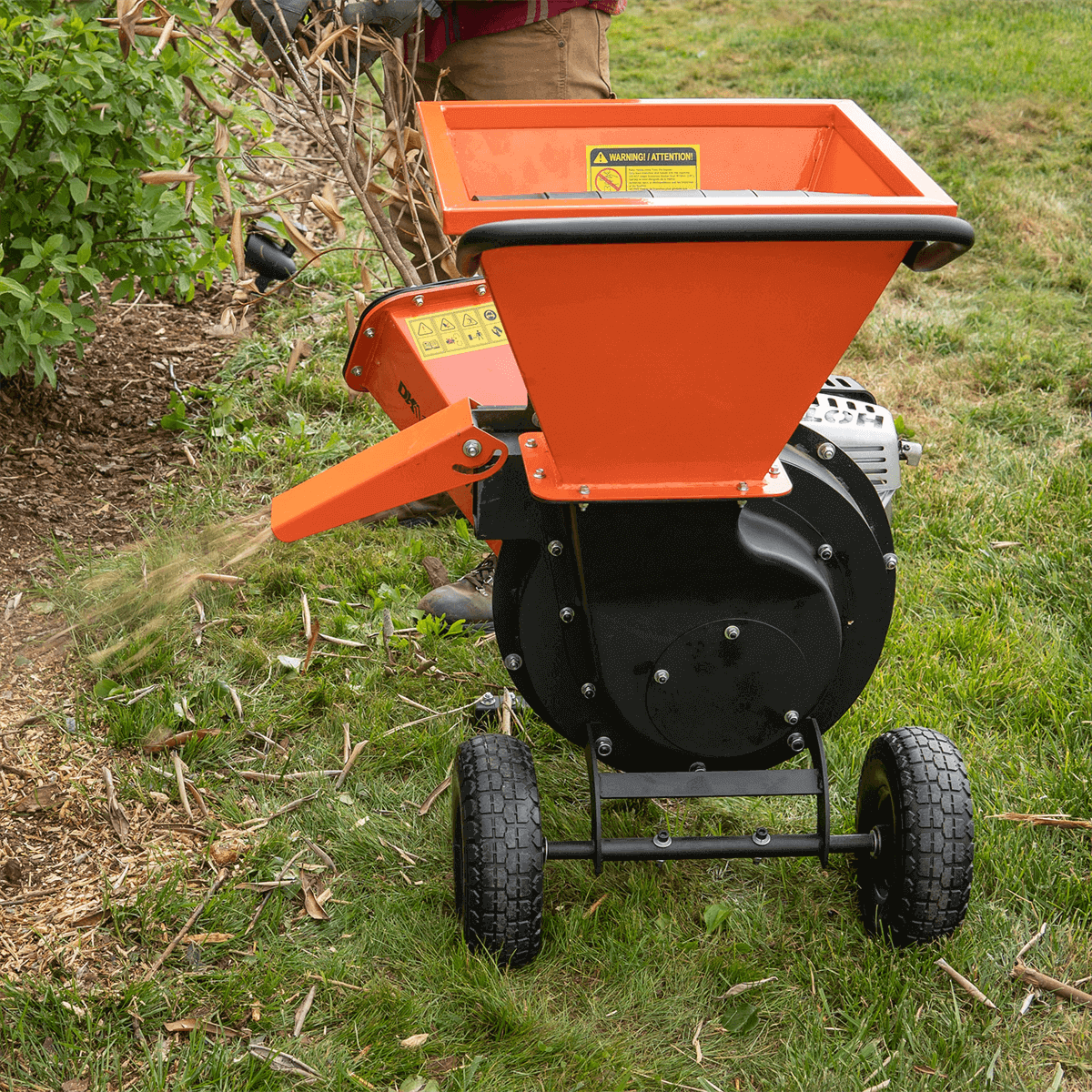

The ATV-towable OPC503 Chipper Shredder features a KOHLER® Command PRO® CH270 7 HP 208 cc engine with high-strength double-edge cutting blades for extended sharpness. Its direct drive system efficiently processes trees, branches, leaves, and compost. Additional features include a 4-stage cyclonic air filter, auto-blade feeding, removable key lock shutoff, and ATV-locking off-road tires.
Specification
Certification(S)
EPA Phase III, CARB Phase III
Material
Steel
Material Finish
UV Powder Coated
Color
Black, Orange
Wheels
4.10/3.50-4 10 in (25.4 cm) O.D. x 3.5 in (8.9 cm)
Coupler
Lawn tractor/ATV hitch pin
Wheelbase
21.7 in (55 cm)
Maximum Speed
Off-road only and max speed 15 mph (24 km/h)
Engine/Motor
KOHLER® RH265 6.5 HP 196 cc gas engine
Engine/Motor Maximum Torque
10.7 ft/lb (14.5 Nm)
Cutters
Double-edge blades and hammer shredders
Handle Height
37.4 in (95 cm)
Maximum Feed Chute Capacity
Ø3 in (Ø7.6 cm)
Maximum Top-Loading Hopper Capacity
Ø3/8 in (Ø0.95 cm)
Expulsion Chute
Vertically adjustable deflection
Assembled Dimensions (LxWxH)
41.7 in x 34.3 in x 37.4 in
Assembled Weight
136.7 lb
Disclaimer
Product appearance and specifications are subject to change, Off-road only and max speed 15 mph (24 km/h)
Warranty
2-year KOHLER® engine and 1-year limited DK2 chassis
Feature
Powered by a KOHLER 2000 Series RH265 6.5 HP 196 cc engine.
Direct drive combo chipper shredder with double edge chip and hammer shredders.
Chips through trees up to 3 inches in diameter through the large side feed chute.
Shreds through twigs and brush up to 3/8 inches in diameter through the extra-large top-loading hopper.
Includes a large chip bag capable of holding up to 4.3 bushels.
Drop stand and handy removable hitch pin tow bar.
4.10/3.50-4 10-inch tires.
Includes 2-year KOHLER and 1-year limited DK2 warranty.
Package Size
LxWxH (inch): 29.5 x 22 x 20.9
Weight (lb): 158.7
A forklift or equivalent is required for unloading.
