KT-4H110 Four Post Vehicle Lift 11,000lbs

Revolutionize your parking and maintenance experience with the KT-4H110 Four Post Vehicle Lift, boasting an impressive 11,000 lbs lifting capacity. This lift is not just a tool; it's a game-changer for your garage. Effortlessly create additional parking space by securely elevating your vehicle, transforming your garage into a multi-functional haven. The sturdy construction ensures stability, making it a reliable choice for extended parking durations. Say goodbye to cramped parking and hello to an organized, efficient space. Elevate your garage with the KT-4H110 – where convenience meets capacity, and parking becomes a stress-free affair.
User Manual

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

*Rolling jacks and casters can be purchased separately but are not included.*

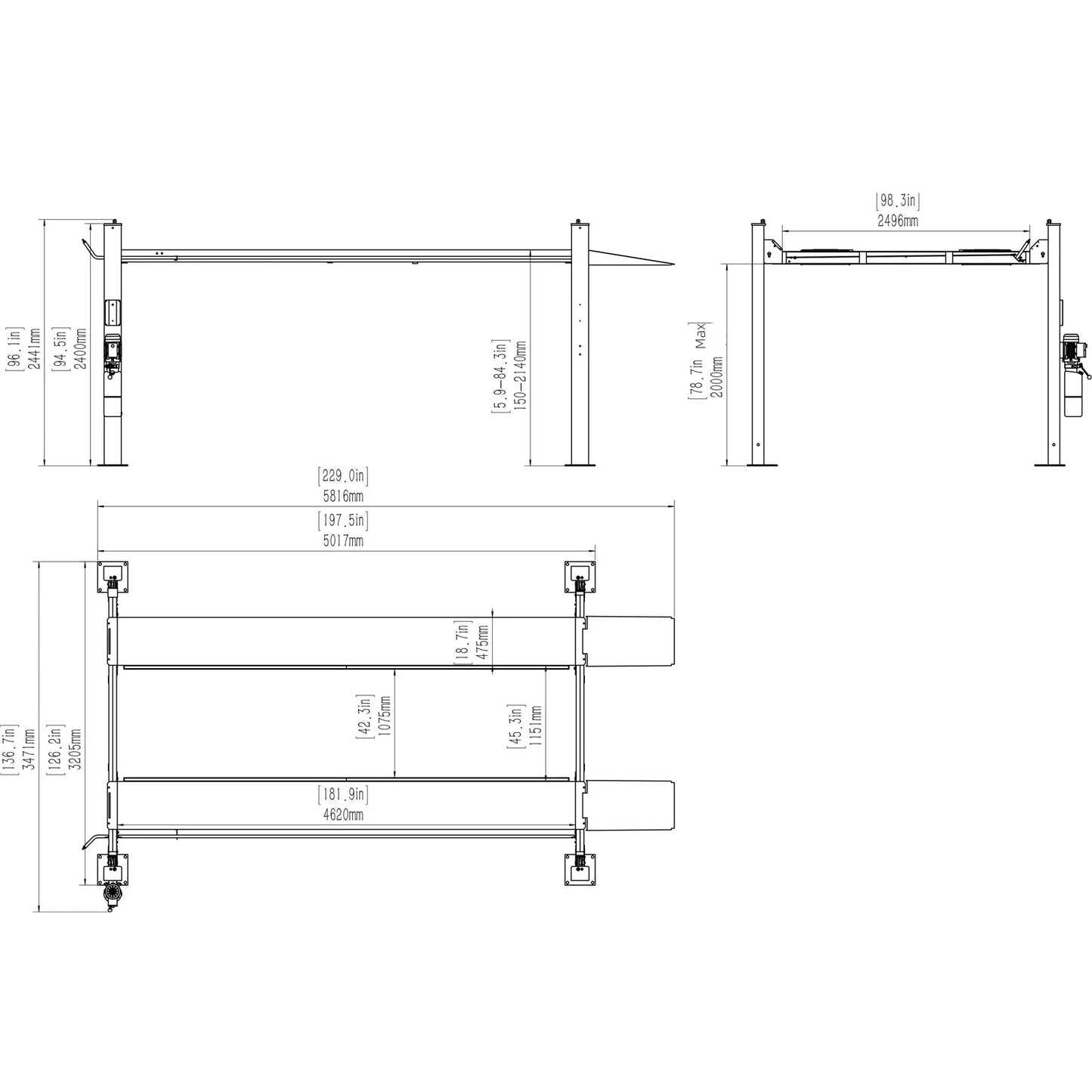

Specifications

Dimension(LxWxH)
Net weight	2116 lbs
Lifting Capacity	11000lbs/4990KG
Max. Lifting Height	84.25" / 2140mm
Lifting Time	83s Up / 40s Down
Height of Posts	94.88" / 2410mm
Width Overall	126" / 3200mm
Length Overall	229.73" / 5835mm (with Ramps)
Inside Columns	112.81" / 2865mm
Min. Runway Height	6.2" / 157mm
Motor	110VAC/60HZ/1PH

Feature

• 11000 lbs lifting capacity.
• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
• Single Point Manual Safety Lock Release.

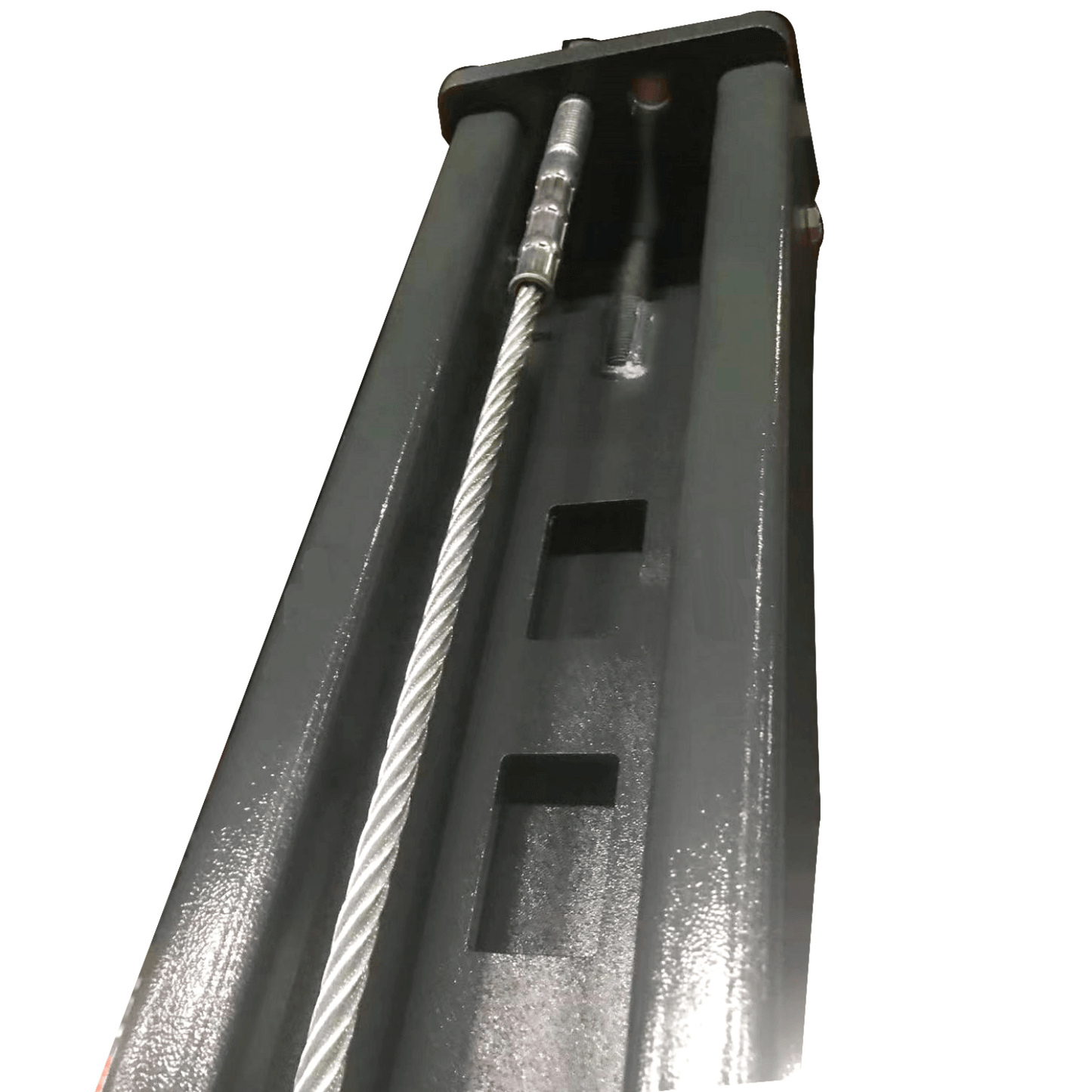

• Four mechanical locking devices, each equipped with both primary and secondary safety locks.
• Powerside column can be installed at both sides, front or rear.
• Non-skid diamond platforms and adjustable safety lock ladders.

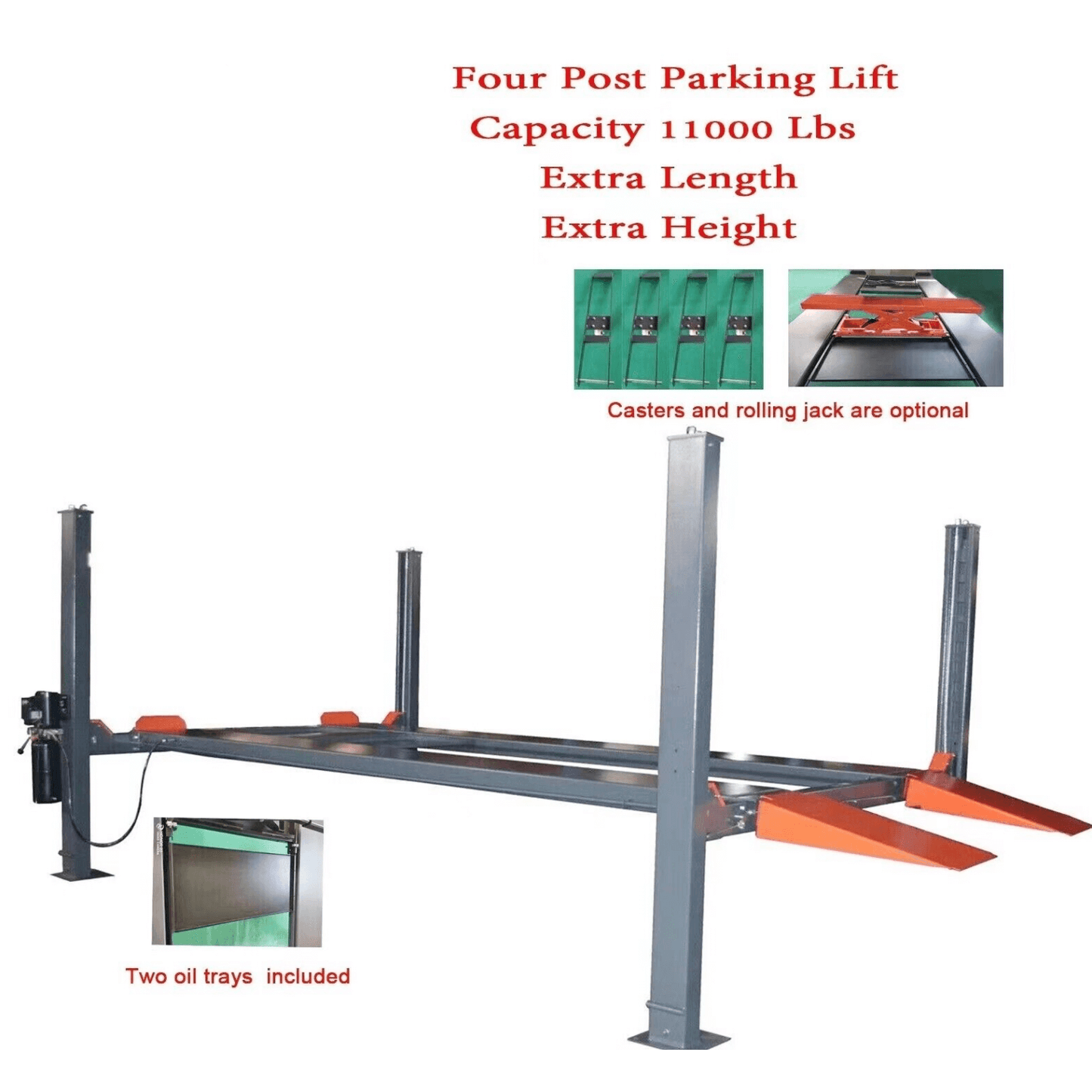

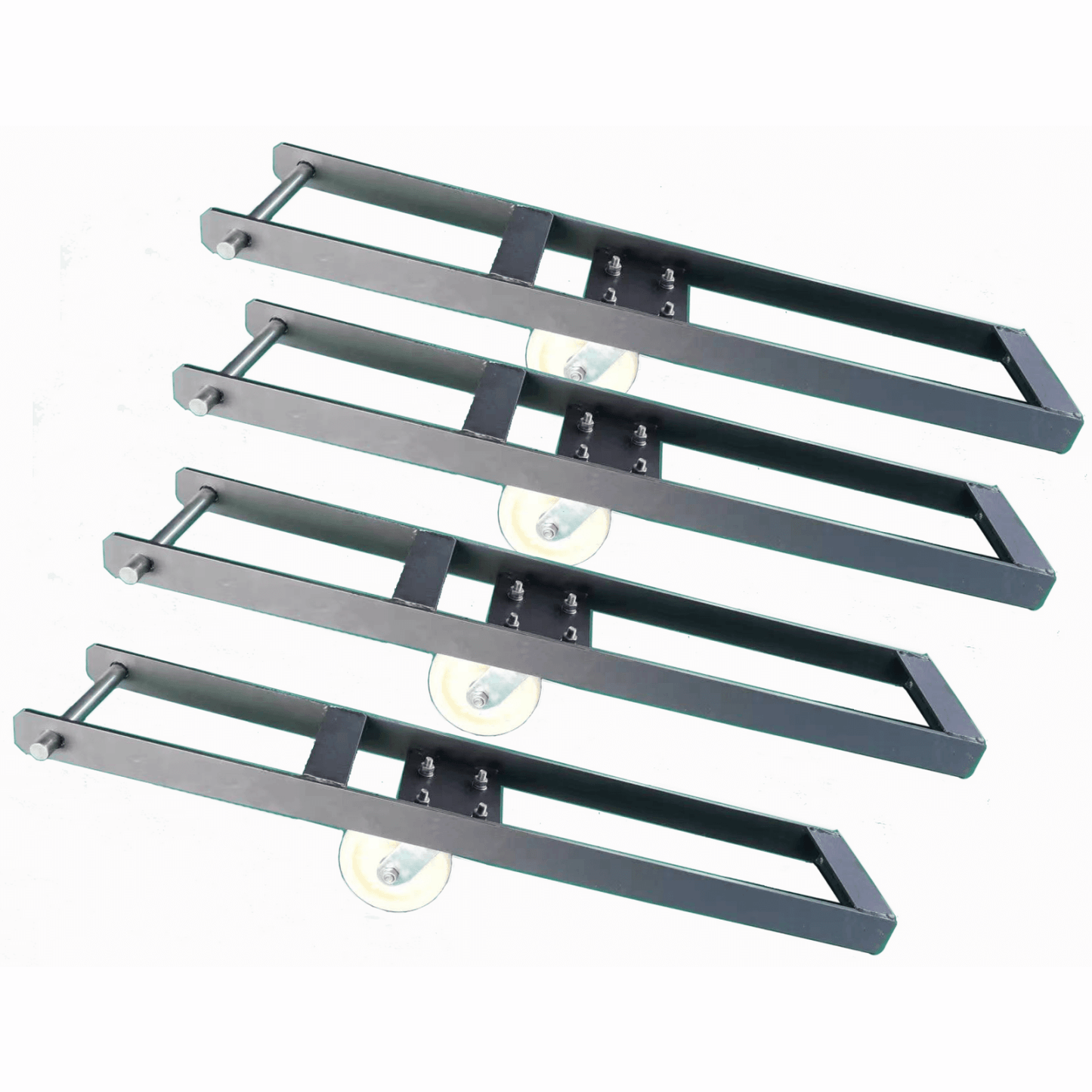

• Optional caster kit for moving the lift around, and optional rolling jacks. *Rolling jacks and casters can be purchased separately but are not included.*

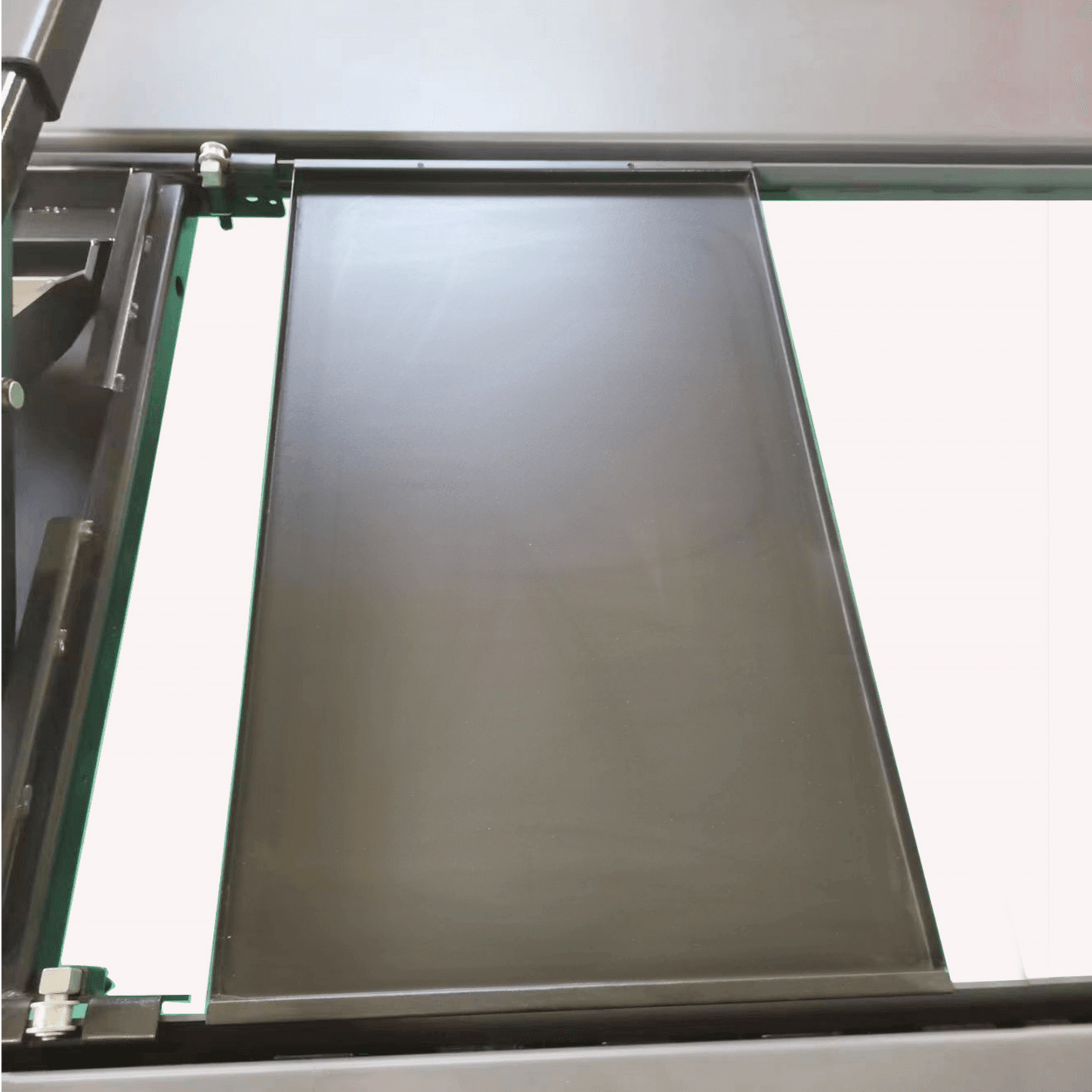

• Comes with two drip trays and a jack tray.

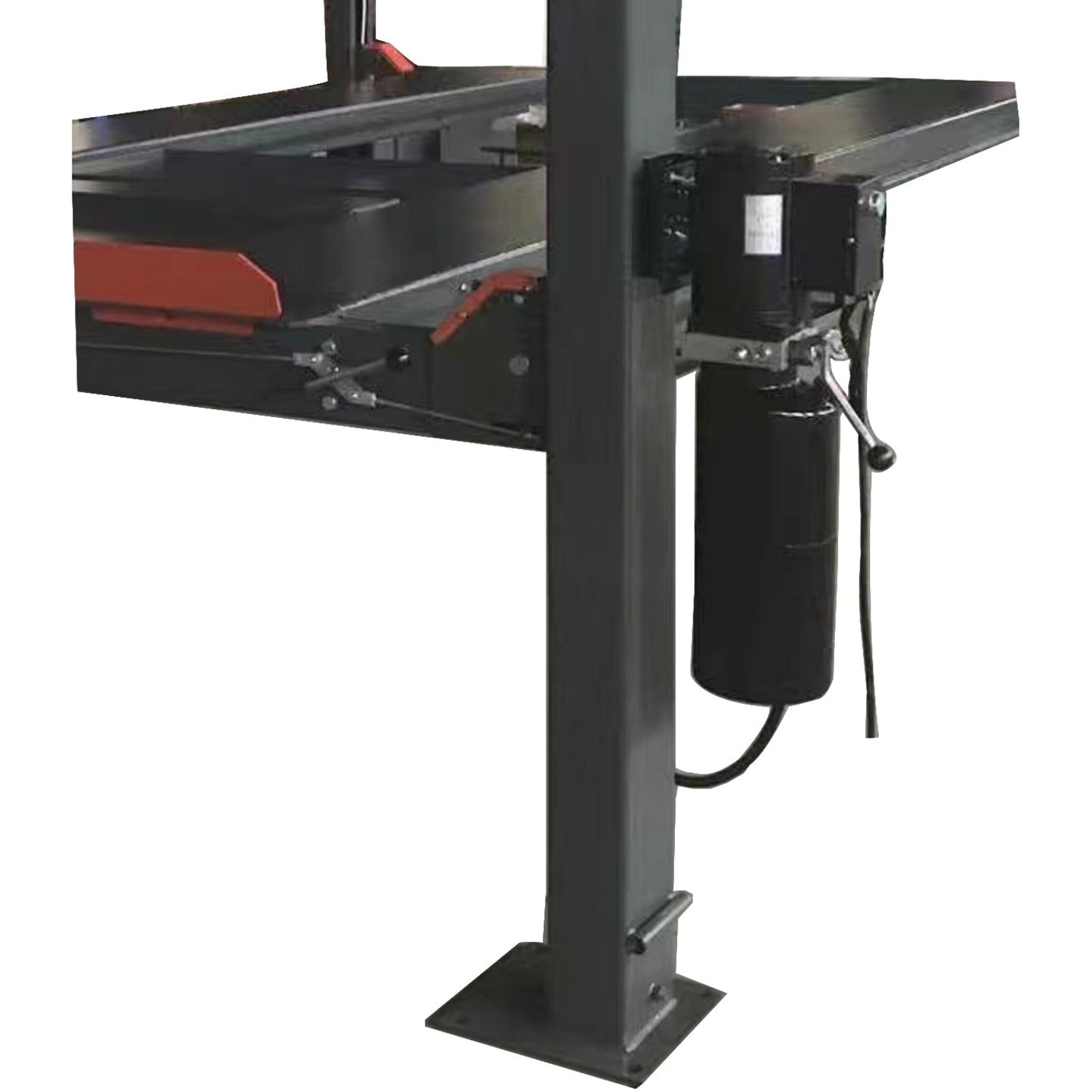

• High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional).

Package Size

• LxWxH (inch): 195x26x32

• Weight (lb): 2117

• A forklift or equivalent is required for unloading
