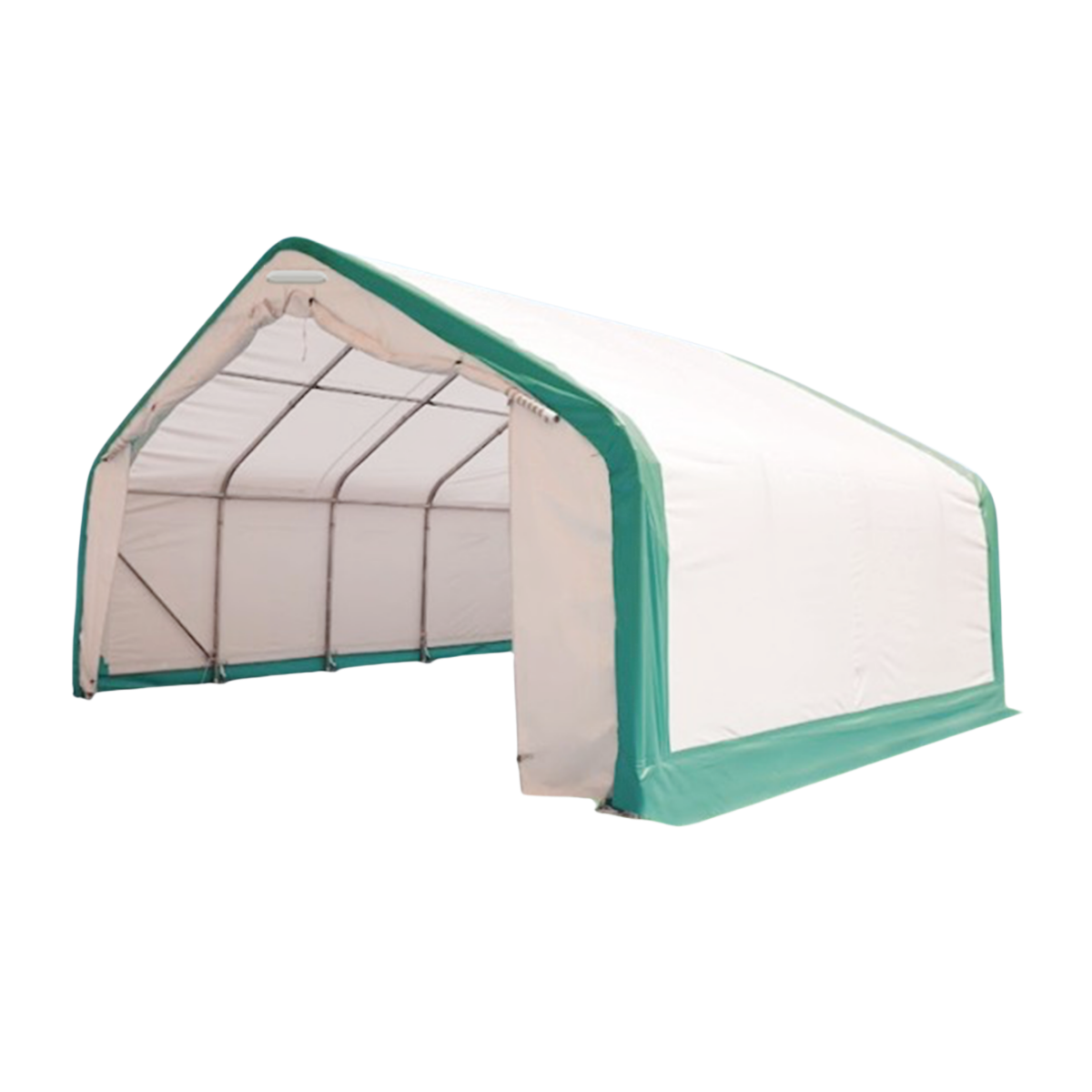

Single Truss Storage Shelter W20'xL40'xH12'

The Gold Mountain Storage Shelter W20’xL40’xH12’ - Single Truss offers unlimited protection from storms, snow, rain, and sun. Ideal for vehicles, materials, tools, and events, it includes a 3-year warranty for peace of mind. The peak design aids snow removal, and the durable PVC fabric outlasts PE, providing superior weather resistance. Perfect for various storage needs, this shelter ensures reliable protection and longevity.

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.

How to build a Storage Shelter?

Installation Manual

Specifications

Description	Specifications

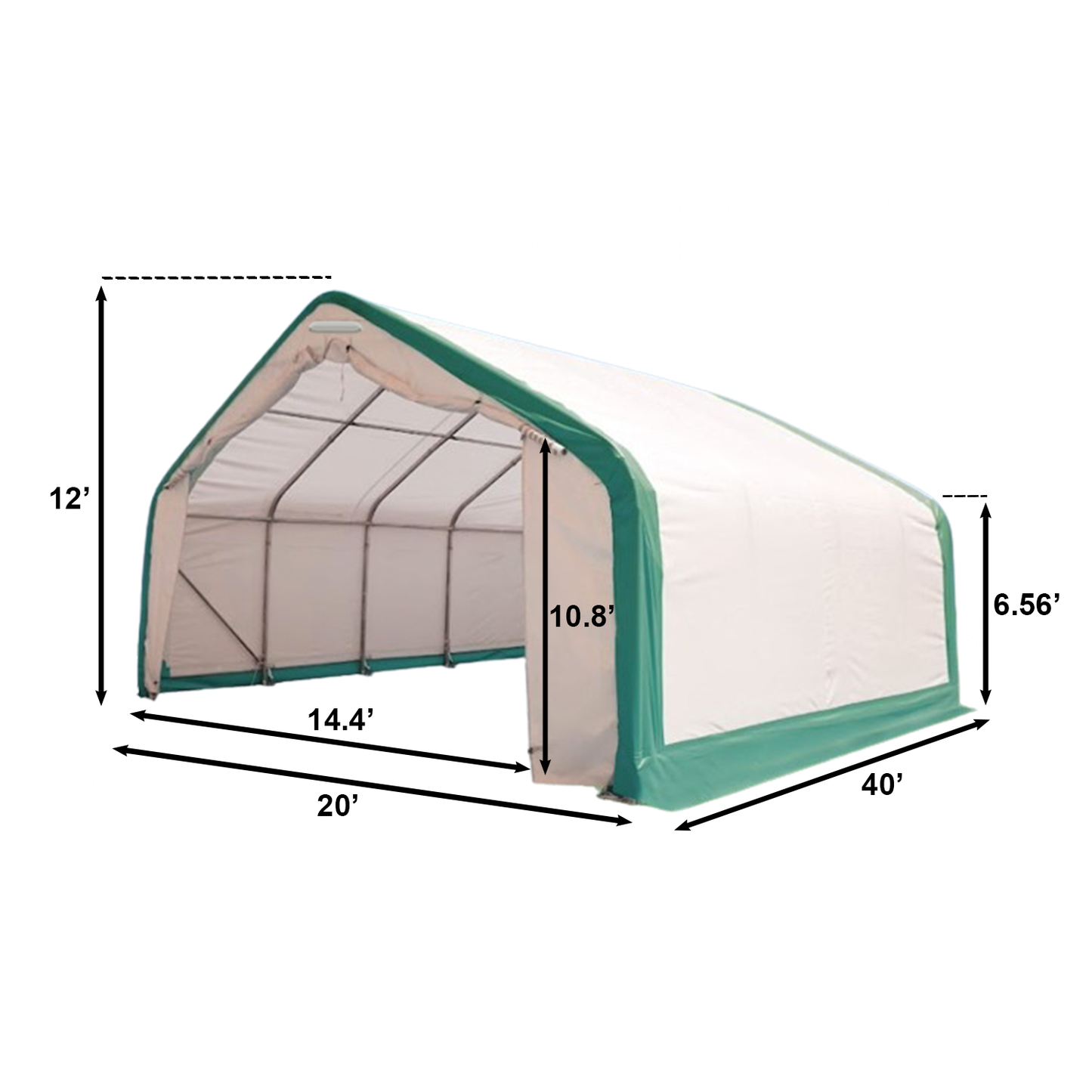

Dimensions (WxLxH)	20'x40'x12'
Side-wall Height	6.56 ft
Door size (WxH) (Front & Rear)	14.4'x10.8'
Door Type	Zipper Rollup Door
Frame	Single Truss Galvanized Tube
Steel Frame	Hot Dip Galvanized Steel
Truss tube	16 Gauge
Tarp Fabric	PE or PVC
Tarp Color (customizable)	White with Green/Red Edge
Temperature resistance	-22 - +158 °F
Arch Ø	Ф 70x42x1.5mm
Purlin Ø	Φ 40x1.2mm
Arch Spacing	5 ft
Number of Arch	9

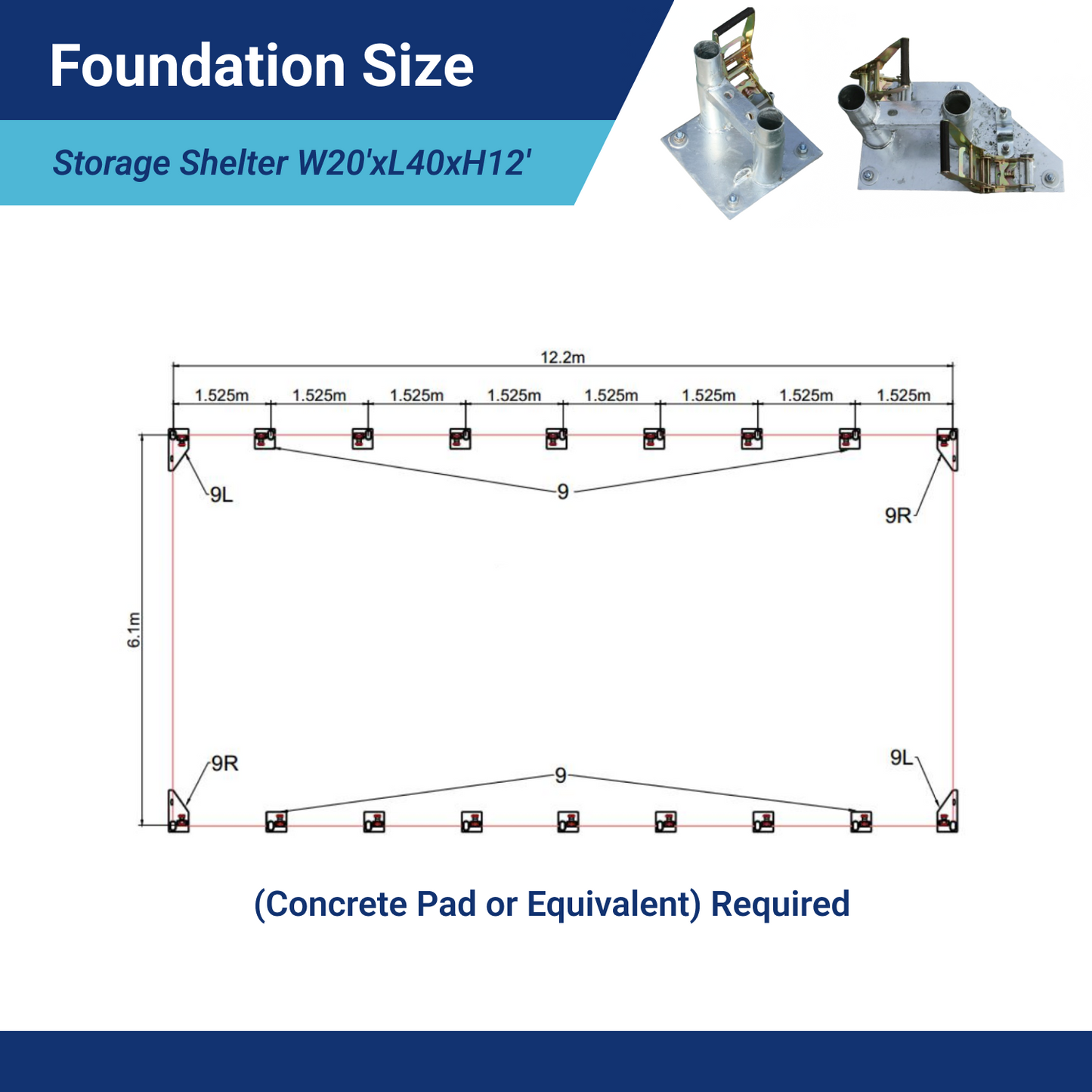

Number of Anchor plates	18

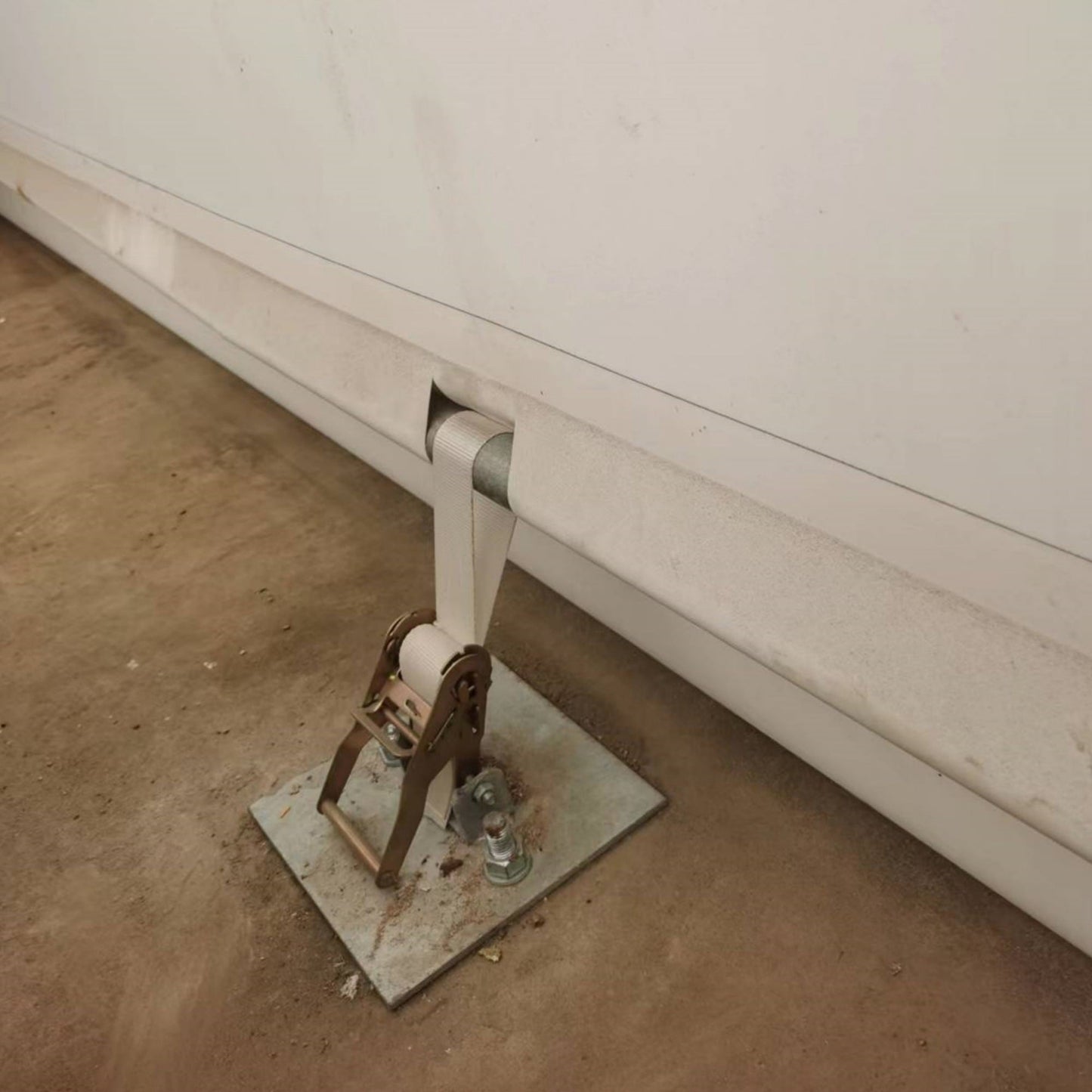

Tension System	Pipe and Ratchet Tie-Down System
Average assembly time for DIY with 4 persons	2 Days

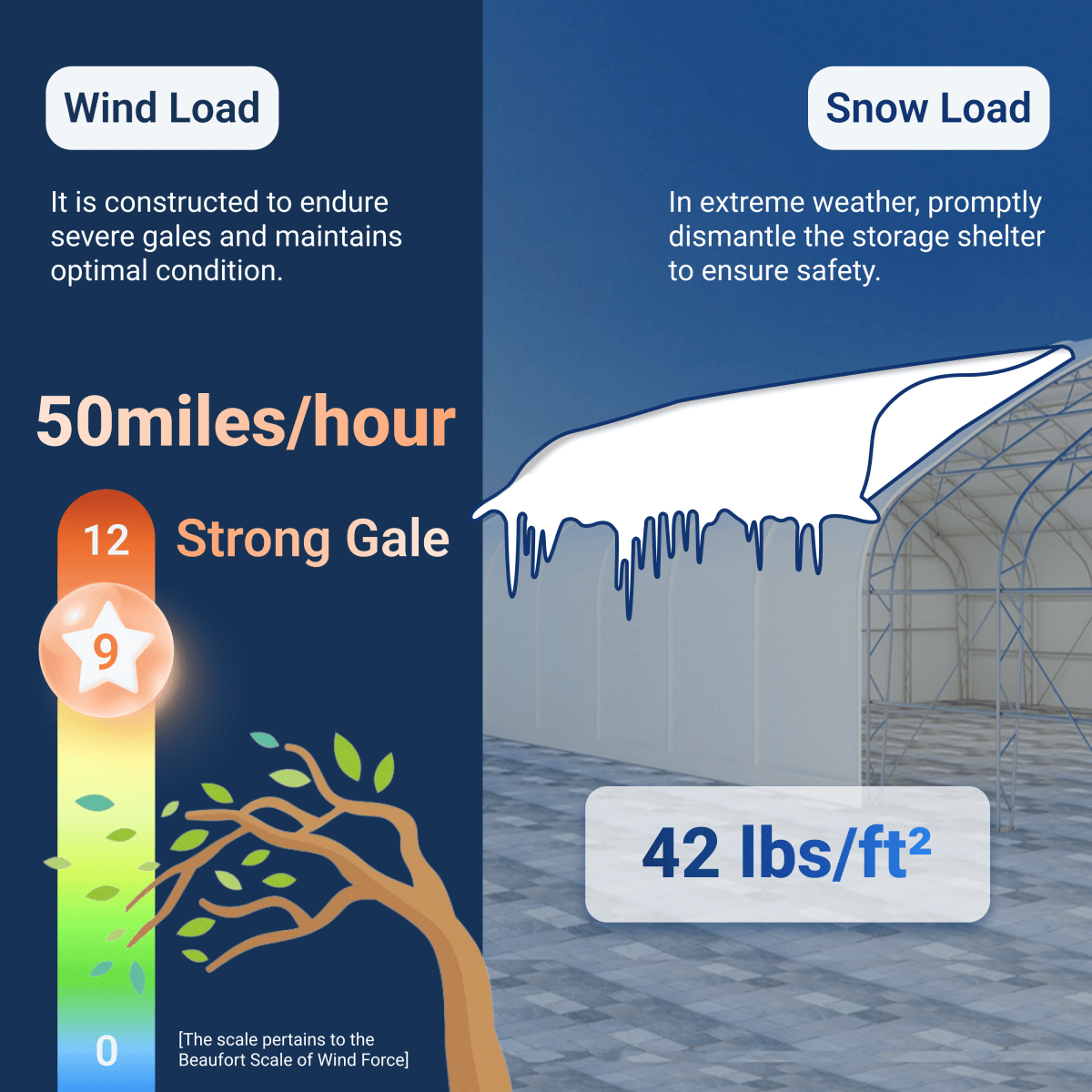

Snow Load	42 lbs/ft²
Wind Load	50 miles/h
Tarp lifespan	7-10 years, depending on the type of fabric and environmental conditions.
Frame lifespan	15+ Years
Warranty	- PE: 2 Years Warranty. - PVC: 8 Years Warranty.
Fabric (Optional)	Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric Please contact us to order.
Country of Origin	China

Installation Tips

1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.

2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.

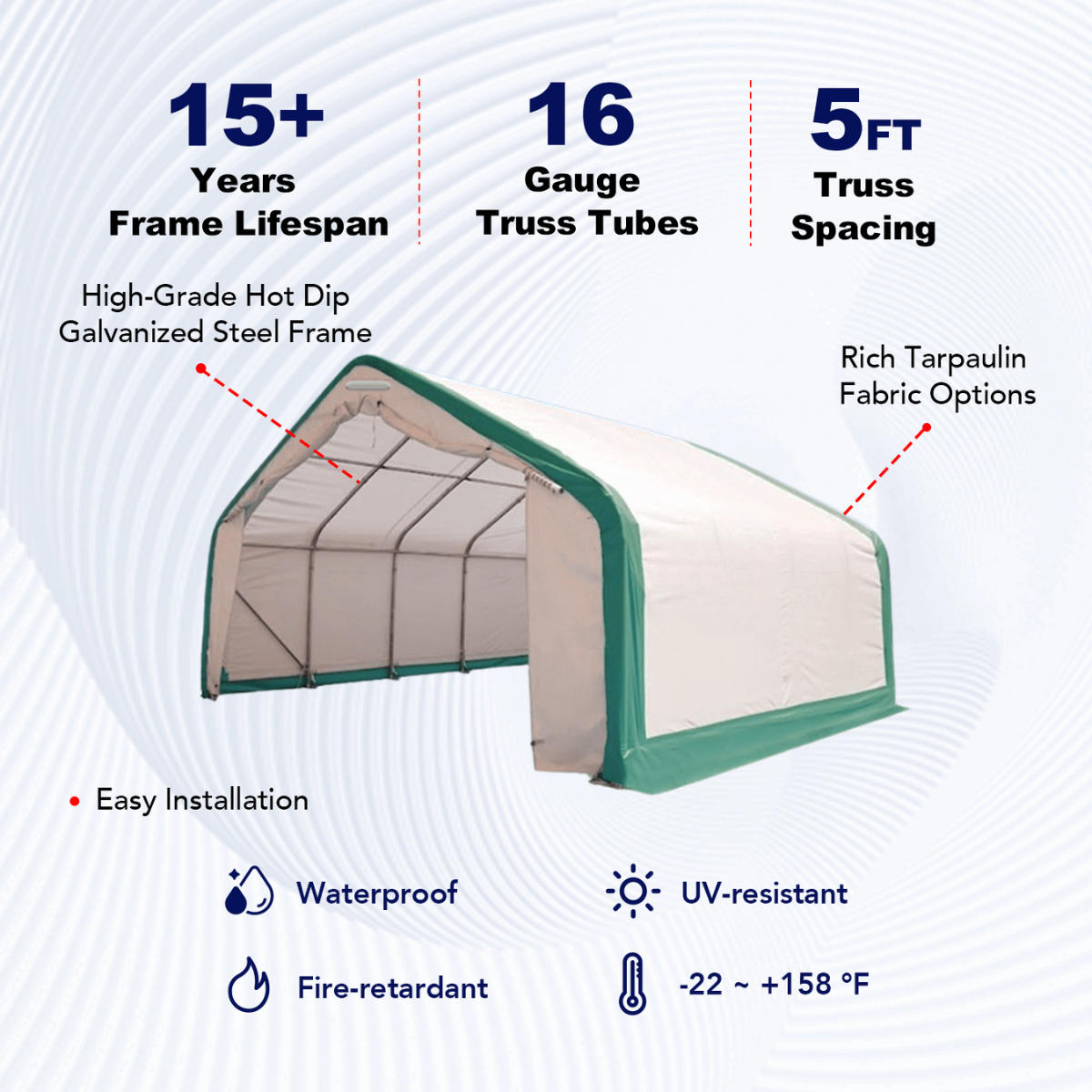

Features

• No building permits required*.
• Ideal for agriculture, farms, events, film sets, garages, and automobile storage.
• The galvanized steel structure is built to last, which is resistant to rusting and corrosion.
• Weatherproof (snow, storm, wind, water), UV resistance, and fire retardant.
• The PVC provides bright natural light, which helps to save on utility bills.
• Easy entry and exit with double doors placed at both ends.
• The quality of the structure is designed by experienced engineers and advanced technology.
• Easy to install or dismantle and transport to the new locations.

Package Size

• LxWxH (inch): 85x30x26
• Weight (lb): 2310
• A forklift or equivalent is required for unloading.



Delivery and Unloading

• The product will be either loaded onto a box or flatbed truck, depending on its size.
• A forklift or equivalent is required for unloading.
